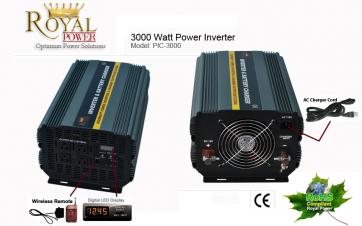

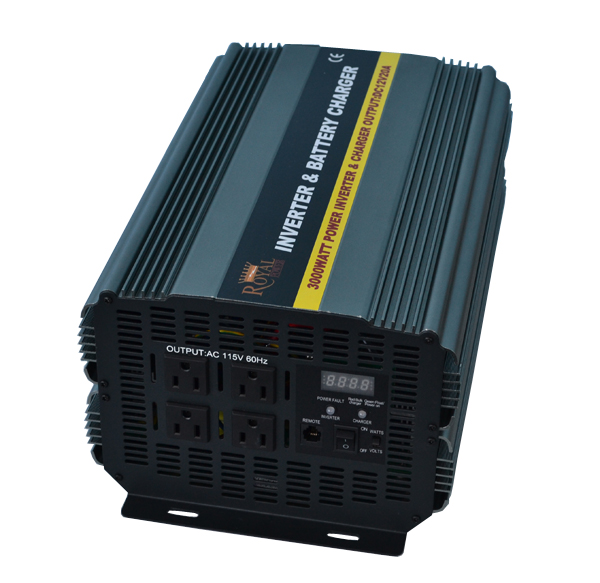

3000 Watt Power Inverter Charger 12 Volt DC To 110 Volt AC
  • 3000 Watt Power Inverter Charger 12 Volt DC To 110 Volt AC

3000 Watt Power Inverter Charger 12 Volt DC To 110 Volt AC

Product Code : PIC-3000
The 3000 Watt 12 volt dc to 120 volt ac power inverter with 20 amp charger and automatic transfer switch is the perfect system you use with your back up emergency equipment of 24.25 amp or less. This type of wattage will cover most sump pumps and a large range of heating and cooling systems. By connecting this inverter directly to a 12 volt battery system and then plugging the ac charger cord to any home outlet your home UPS in now ready for use. The system will detect a loss of utility power and then switch directly to battery backup power. When utility power is available the charger will bulk charge the batteries until fully charge then go into a float mode. This unit also includes a digital monitoring system that displays battery voltage and wattage load applied.
     Share with Facebook      tweeter      Linkedin



Pricing and more information available at POWERINVERTERS.COM

Specifications

Optimum efficiency Up to 95%
No-load draw < 0.8 amp (12V)
Output Wave Form Modified Sinewave
Input voltage range 10.5-15 VDC
Over voltage shutdown Over 15 VDC
Under voltage shutdown Under 10.5 VDC
Low voltage alarm Audible
Overload shutdown Yes
Thermal shutdown Yes
Short circuit shutdown Yes
AC receptacle 4 3-prong receptacles
Warranty 1 year
Inverter weight 18.8 lbs
Dimensions (W x H x D) 9.0 x 6.3 x 15.0 inches

Features

  • 3000 watts continuous power
  • 6000 watts peak power
  • Provides 24.25 Amps
  • DC input voltage: 10.5-15V
  • Anodized aluminum case provides durability
  • Builtin Cooling Fan
  • Internal, Replaceable 30 Amp spadetype Fuses
  • 4 3 Prong 120 volt AC outlet
  • Digital Amp~Wattage display Helps monitor overloads
  • Built-in 20 amp Battery Charger and Automatic Transfer Switch
  • Overload Indicator
  • Power ON/OFF Switch
  • Free 100ft Range Wireless Remote
  • 3 FT Battery Cables Included

Accessories

Applications

This 3000 Watt 12 Volt DC to AC Power Inverter is specially designed to perform under extreme conditions. This unit can provide over 12 amps of power which gives you the ability to power a large variety of electronics. From all types of battery chargers, TV’s, Power Tool (Power Drills, Saws, Pumps, Vacuums), microwaves, air conditioners, water pumps and air compressors.

This newly designed heavy duty inverter is ideal to be used as a home UPS backup. The unit will auto detect power losses and transfer to battery power automactically.
